Using SITL with X-Plane

This article describes how to use X-Plane 10, 11 or 12 as a simulation backend for ArduPilot SITL.

Overview

X-Plane is a commercial flight simulator with a rich networking interface that allows it to be interfaced to other software. In this case we will be interfacing it to the ArduPilot SITL system, allowing ArduPilot to fly a wide variety of aircraft.

Using X-Plane with SITL is a good way to get some experience flying ArduPilot and learning how to use the ground control station. It can also be used to see how ArduPilot handles unusual aircraft and to develop support for aircraft features that may not be available in other simulator backends.

Before starting SITL the only thing you need to setup on X-Plane is the network data output, sending the sensor data to the IP address of the computer that will run ArduPilot. This can be the same computer that is running X-Plane (in which case you should use an IP address of 127.0.0.1) or it can be another computer on your network.

How it works

• SITL listens for X-Plane data on UDP port 49001 and sends its commands to X-Plane on UDP port 49000.

• X-Plane only needs to be told to send one data row to SITL. When the first packet arrives, SITL records the IP address it came from and sends all further commands there. It then tells X-Plane which other data rows it needs and turns off any it does not use, so the rest of the Data Output screen does not need to be set up by hand.

• SITL asks X-Plane for its version number and adjusts for the change in gyro data format introduced in X-Plane 12 automatically.

• ArduPilot’s servo outputs are sent to X-Plane as datarefs (named X-Plane variables), using a JSON map file that is built into SITL: xplane_plane.json for Plane, and xplane_heli.json for Helicopter builds. The same file maps X-Plane joystick axes and buttons to ArduPilot RC input channels. The default maps can be viewed in the ArduPilot source at Tools/autotest/models.

• To change the mapping (for example for a different aircraft or joystick), copy the JSON file into the directory SITL is started from and edit it. The local file is used instead of the built-in one if it is present when SITL starts, and SITL reloads it automatically when it changes, as long as the vehicle is disarmed.

• X-Plane’s sensor data is not good enough to run the EKF, so SITL sets these parameter defaults (parameters you have saved still take priority):

  • AHRS_EKF_TYPE = 10 (simulated EKF)

  • GPS1_TYPE = 100 (SITL GPS)

  • INS_GYR_CAL = 0 (no gyro calibration at startup)

  • Plane only: SERVO5_FUNCTION = 3 (flaps), with SERVO5_MIN = 1000 and SERVO5_MAX = 2000

Setup of X-Plane 11 and 12

Go to Settings -> Data Output menu in X-Plane and activate the General Data Output tab. Check the Network via UDP column for at least one of the settings that ArduPilot will use (e.g. Times in the second row). The others will be set with commands over the network by ArduPilot itself; note that you can use that to verify a two-way connection.

In the right part of the interface, set UDP Rate to 50.0 (recommended) and make sure that the checkbox below labeled Send network data output is set. Set the IP Address field to the address of the computer running SITL. Set Port field to 49001.

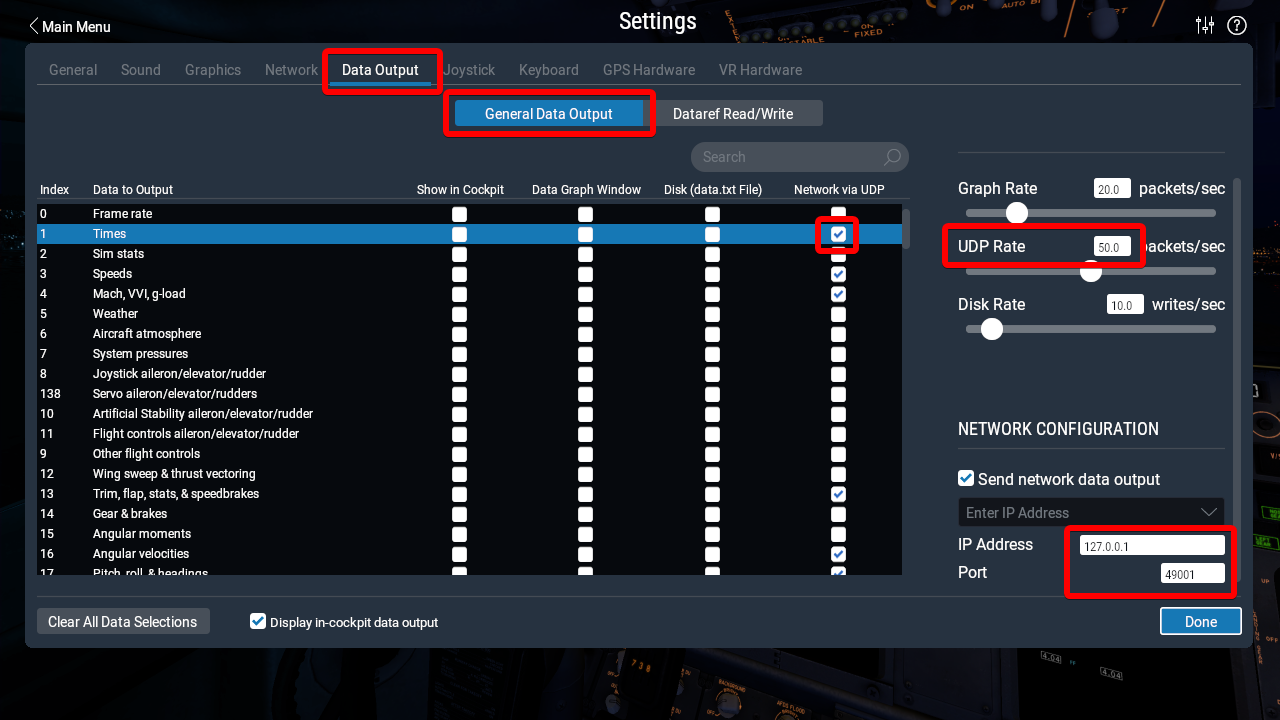

X-Plane 11 Data Output screen

Setup of X-Plane 10

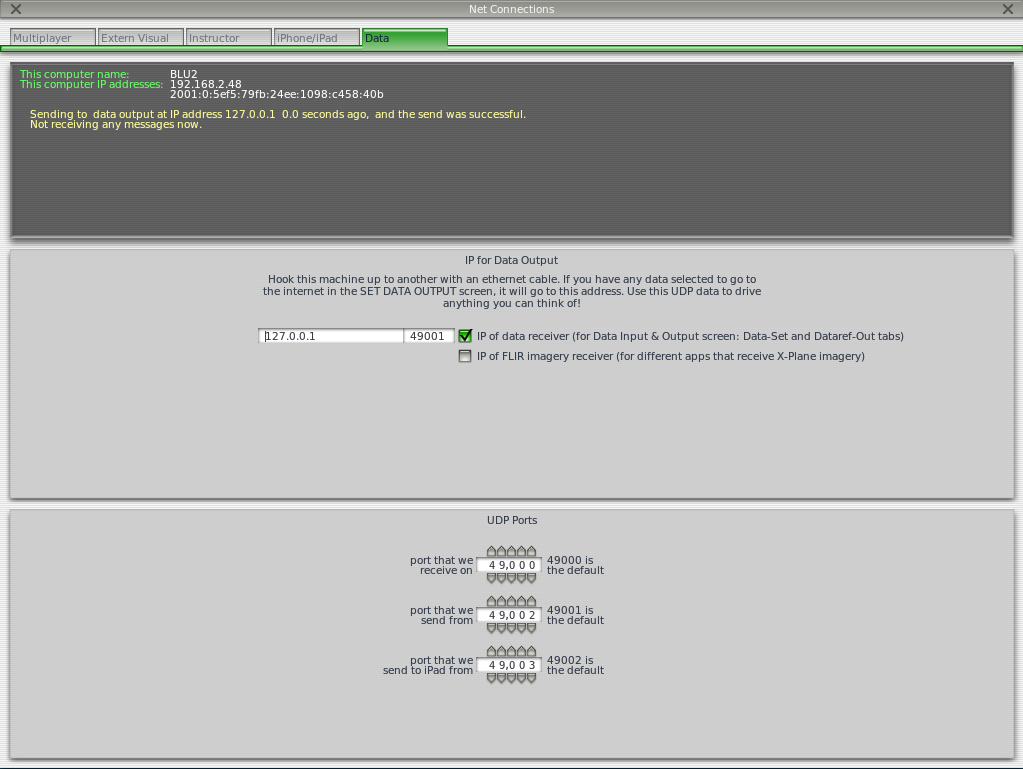

Go to the Settings -> Net Connections menu in X-Plane and then to the Data tab. Set the right IP address, and set the destination port number as 49001. Make sure that the receive port is 49000 (the default). If using loopback (ie. 127.0.0.1) then you also need to make sure the “port that we send from” is not 49001. In the example below 49002 is used.

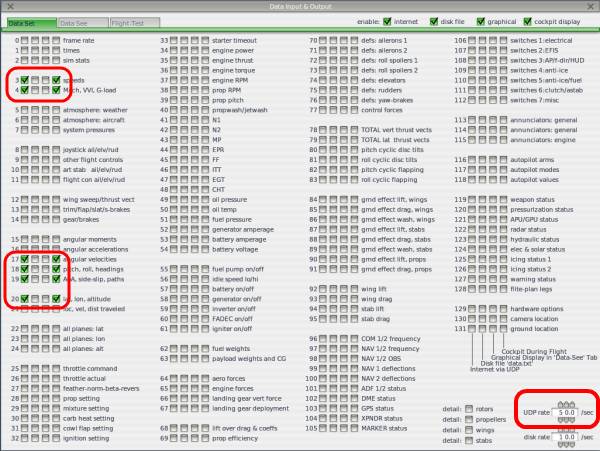

You will also need to output data from X-Plane. Click on Settings, then Data Input & Output. Copy at least 1 setting from the screenshot below. ArduPilot will then send commands to X-Plane that will enable all of the output data fields that it needs to operate.

Joystick

If you have a joystick connected to X-Plane, it will be available as R/C input when ArduPilot is in control of X-Plane, allowing you to fly the aircraft with the joystick in ArduPilot flight modes.

SITL reads X-Plane’s raw joystick axes (1 to 6) and buttons, and maps them to RC input channels using the JSON map file described in How it works. In the default maps, axes 6, 5, 4, 2 and 3 are RC channels 1 to 5 (roll, pitch, throttle, yaw and channel 5), and buttons 1 to 4 are RC channels 6 to 9. If your joystick’s axes are numbered differently, or the axis directions or ranges need changing, edit the axis numbers and input_min/input_max values in a local copy of the JSON file. Buttons can be used for flight mode changes or any other RC channel function; a button entry whose mask includes two bits gives a three position switch.

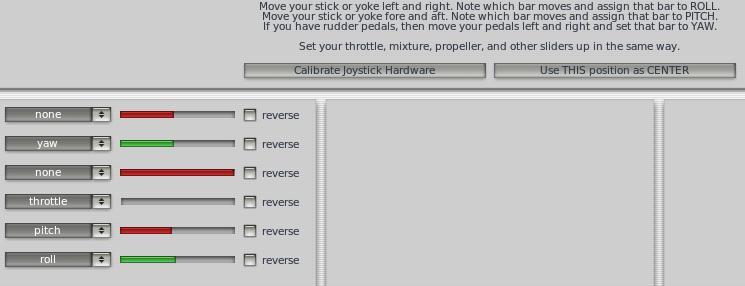

The joystick must be detected and calibrated in X-Plane under Settings -> Joystick and Equipment. Note that X-Plane has an unusual throttle setup where the bar is fully to the left at full throttle and fully to the right at zero throttle.

Starting SITL

There are three approaches to starting SITL with X-Plane depending on what you are wanting to do.

• running SITL from within MissionPlanner on Windows

• building SITL yourself and connecting from your favourite GCS

• building and running SITL using sim_vehicle.py and MAVProxy

The first approach is good if you just want to test ArduPilot with SITL but you don’t want to make changes to the code. MissionPlanner will download a build of ArduPilot SITL for Windows that is either the current stable release version or a nightly build of the latest ArduPilot code that is under development.

The second approach is good if you want to do ArduPilot development and try out code changes and you want to use a ground station of your choice. Any ground station that supports MAVLink over TCP can be used.

The third approach is good if you want the full capabilities of MAVProxy for ArduPilot SITL testing. MAVProxy has a rich graphing and control capability that is ideal for long term ArduPilot software development.

The second and third approaches need an ArduPilot build environment. See Setting up the Build Environment (Linux/Ubuntu), Setting up the Build Environment (MacOSX), or for Windows, Setting up the Build Environment on Windows 10 using WSL or Setting up the Build Environment on Windows 11 using WSL (which use WSL), and Setting up SITL on Linux.

Using SITL from MissionPlanner

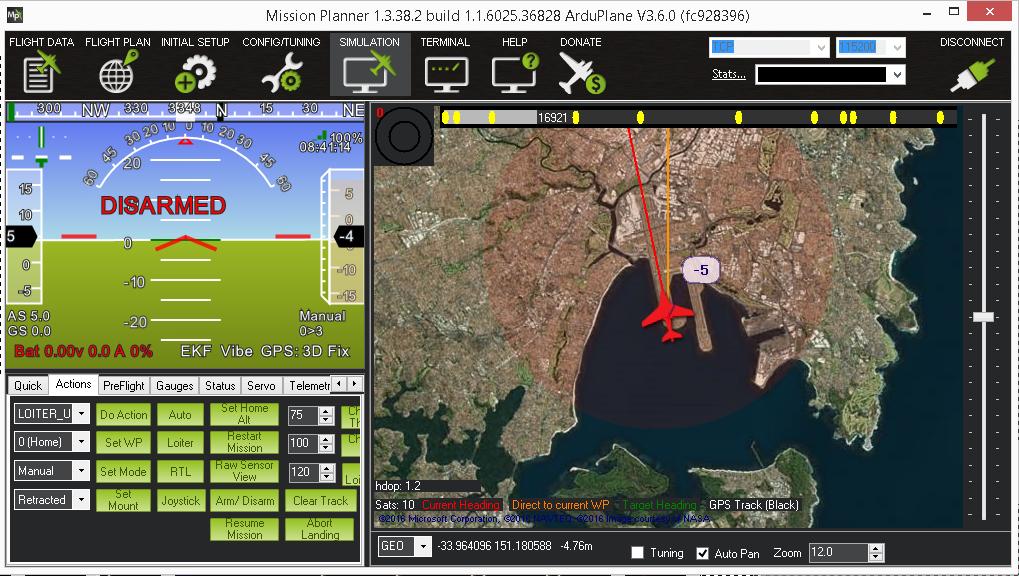

To start SITL directly from MissionPlanner go to the Simulation tab:

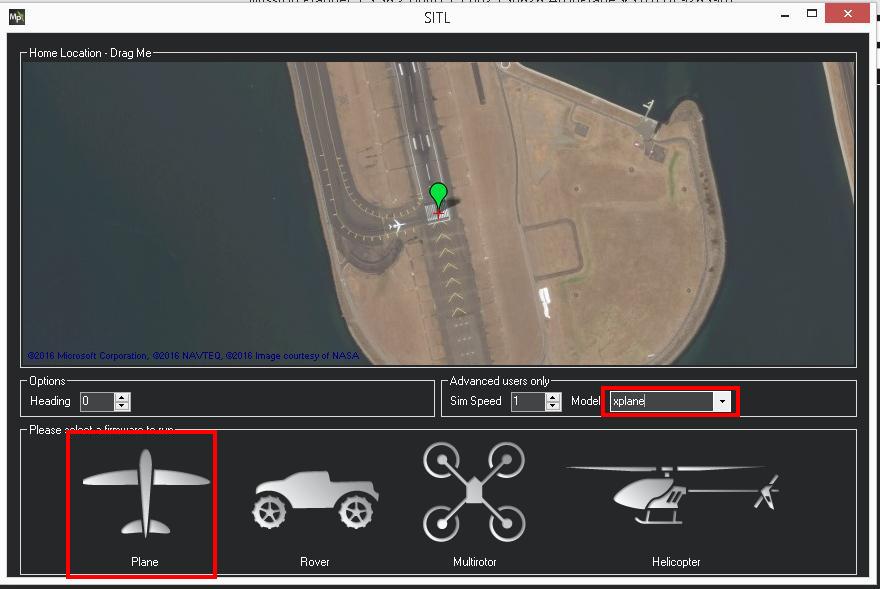

In the Simulation screen you need to select Model “xplane” and then select “Plane”. Built-in JSON maps are provided for fixed wing and helicopter aircraft; other aircraft, such as QuadPlanes, need their own JSON map (see How it works). See below for more information on flying a helicopter.

When you select “Plane” MissionPlanner will present a selection for downloading the current stable release or a nightly build of ArduPilot.

You then need to load an appropriate set of parameters for the aircraft (see Loading Parameters) and enjoy flying as usual with MissionPlanner.

Using SITL with your own GCS

The second approach is to build ArduPilot SITL yourself and run it directly. From the top level ardupilot directory of an ArduPilot git checkout, run:

./waf configure --board sitl
./waf plane
build/sitl/bin/arduplane --model xplane

That will start SITL and wait for a GCS to connect. You should connect on TCP port 5760 and configure ArduPilot as usual.

Using SITL with sim_vehicle.py

The sim_vehicle.py script gives you a lot of options for launching all of the different simulation systems that work with ArduPilot, including X-Plane. It uses MAVProxy as the GCS, which is installed as part of the ArduPilot build environment setup.

It is useful to create a sub-directory for each aircraft you fly in SITL so that settings, and any local JSON map file, are kept per-aircraft. In the following example the PT60 aircraft in X-Plane is used, so a PT60 directory is created:

cd ArduPlane
mkdir PT60
cd PT60

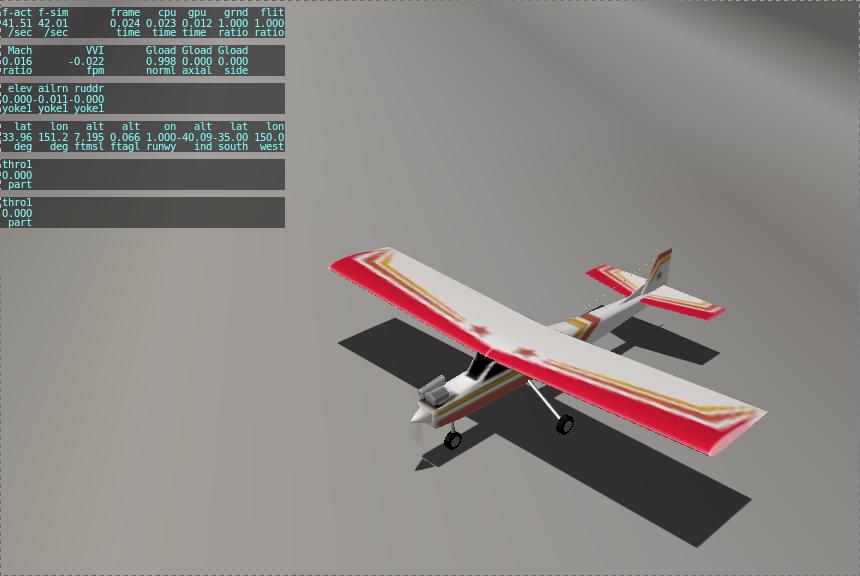

sim_vehicle.py -D -f xplane --console --map

If X-Plane is running on a different computer, -f xplane is all that is needed on the SITL side: X-Plane’s Data Output IP address must be set to the SITL computer, and SITL replies to whichever address the data comes from.

Note

SITL running inside a Docker container may not be able to send commands back to X-Plane, because Docker changes the address the X-Plane data appears to come from. See ArduPilot PR #32218.

Using SITL running inside WSL2

The currently recommended way of setting up SITL for Windows runs in Windows Subsystem for Linux, as explained in Setting up the Build Environment on Windows 10 using WSL for Windows 10 systems or Setting up the Build Environment on Windows 11 using WSL for Windows 11 systems.

With X-Plane running on Windows and SITL running inside WSL2, X-Plane must be pointed at the WSL2 address of the Linux system. SITL does not need to be told the Windows address, because it replies to whichever address X-Plane’s data comes from.

On the Linux side, get the address with the ip addr command and look for the eth0 device. For example, the relevant block looks like this in Ubuntu:

2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:15:5d:43:ee:d1 brd ff:ff:ff:ff:ff:ff
    inet 172.25.67.144/20 brd 172.25.79.255 scope global eth0
       valid_lft forever preferred_lft forever

Set this address (172.25.67.144 in this example) in the IP Address field shown in Setup of X-Plane 11 and 12 above, then start SITL as usual:

sim_vehicle.py -D -f xplane --console --map

Note

The WSL2 address normally changes each time Windows restarts, so check it and update X-Plane’s IP Address field if SITL stops receiving data. If WSL2 is configured to use mirrored networking mode, X-Plane and SITL share the network and 127.0.0.1 can be used instead.

Loading Parameters

Parameter files (.parm) can be loaded with any GCS:

• MAVProxy: param load <filename>.parm

• QGroundControl: Vehicle Configuration -> Parameters -> Tools -> Load from file…

• Mission Planner: Config -> Full Parameter List -> Load from file

Some parameters (for example servo functions) only take effect after a reboot, so reboot SITL after loading a complete parameter file.

Whichever parameters are used, the servo outputs must match the JSON map for the aircraft. For Plane, the default map expects outputs 1 to 5 to be aileron, elevator, throttle, rudder and flaps. When setting up the aircraft it is useful to use the joystick to move the control surfaces to make sure they are all going the right way. You can change channel direction in the normal way with ArduPilot parameters.

A parameter file for flying the Alia QuadPlane in X-Plane 12 is included in the ArduPilot source at Tools/Frame_params/QuadPlanes/XPlane-Alia.parm. Its VTOL motor outputs are not driven by the default xplane_plane.json map, so a local JSON map that sends them to the aircraft’s engines is also needed.

Flying a Helicopter

It is also possible to fly a helicopter with X-Plane. Use a Copter helicopter build, for example:

sim_vehicle.py -v ArduCopter -f xplane-heli --console --map

or build/sitl/bin/arducopter-heli --model xplane after ./waf heli. Helicopter builds use the xplane_heli.json map, in which:

• outputs 1, 2 and 4 drive roll, pitch and yaw

• output 3 drives the collective

• output 8 drives the engine throttle, so set SERVO8_FUNCTION to 31 (HeliRSC)

• joystick button 3 is a three position switch on RC channel 8, used as the motor interlock (RC8_OPTION = 32)

The startup procedure for a helicopter is:

1. set the motor interlock to disabled (RC input channel 8 low)

2. set zero collective (RC input channel 3 low)

3. arm the helicopter

4. set the motor interlock to enabled (RC input channel 8 high)

5. wait for the head to reach full speed

6. takeoff
