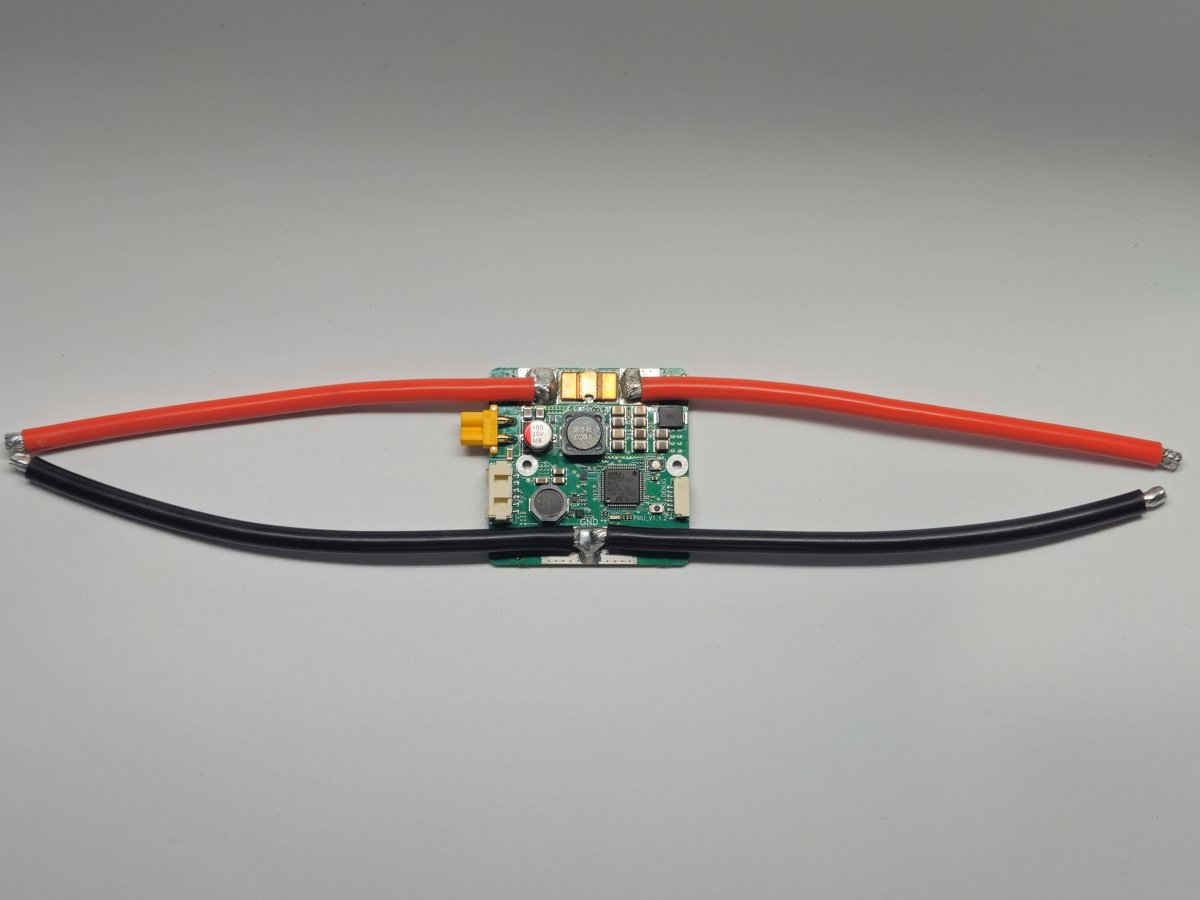

CSKY GaN DroneCAN PMU

../_images/csky-gan-pmu.jpg

The CSKY GaN DroneCAN PMU is a high voltage DroneCAN power module running ArduPilot’s AP_Periph firmware. It measures battery voltage, current and temperature, and provides 5V and 12V power outputs.

Specifications

  • Processor: STM32F412 100MHz, 1024KB Flash, 256KB RAM

  • Voltage Input: 4S-14S (HV)

  • Continuous Current: 200A

  • Burst Current: 300A @ 25°C for 1 sec

  • Max Current Sensing: 200A

  • Voltage Accuracy: ±0.05V

  • Current Accuracy: ±0.7%

  • Temperature Accuracy: ±1°C

  • Power Port 1 Output (Molex): 5V/3A

  • Power Port 2 Output (XT30): 12V/10A

  • Efficiency: 97% @ 10A

  • Protocol: DroneCAN

  • Operating Temp: -25°C ~ +105°C

  • Supports firmware upgrade over CAN

  • No calibration required

  • Connector Types:

    • Power 1 and CAN Port: Molex CLIK-Mate 2mm 6 pin

    • Power 2 Port: XT30PW-F

    • Battery In/Out: tinned wires

  • Physical Dimensions:

    • Size: 57.5mm x 57.5mm x 17.1mm (not including cables)

    • Weight: 140g (including cables)

Where to Buy

CSKY

Status LED

  • Flashing quickly continuously: in the bootloader, waiting for firmware to be flashed

  • Flashing quickly for 3 seconds, then on for 1 second: waiting for CAN connection

  • Flashing slowly (one second intervals): CAN connected

Enable the PMU

Connect the PMU’s Power 1 and CAN port to the autopilot’s CAN port, then set the following parameters and reboot:

Loading Firmware

Firmware for this device can be found here in the sub-folder labeled “CSKY_PMU”.

The *.bin firmware can be updated over CAN using the DroneCAN GUI tool, or the *.apj firmware using Mission Planner as explained here.
